SPECIFICATIONS

Brand Name: DDUF
Hign-concerned Chemical: none
Origin: Mainland China
Type: Face Mill

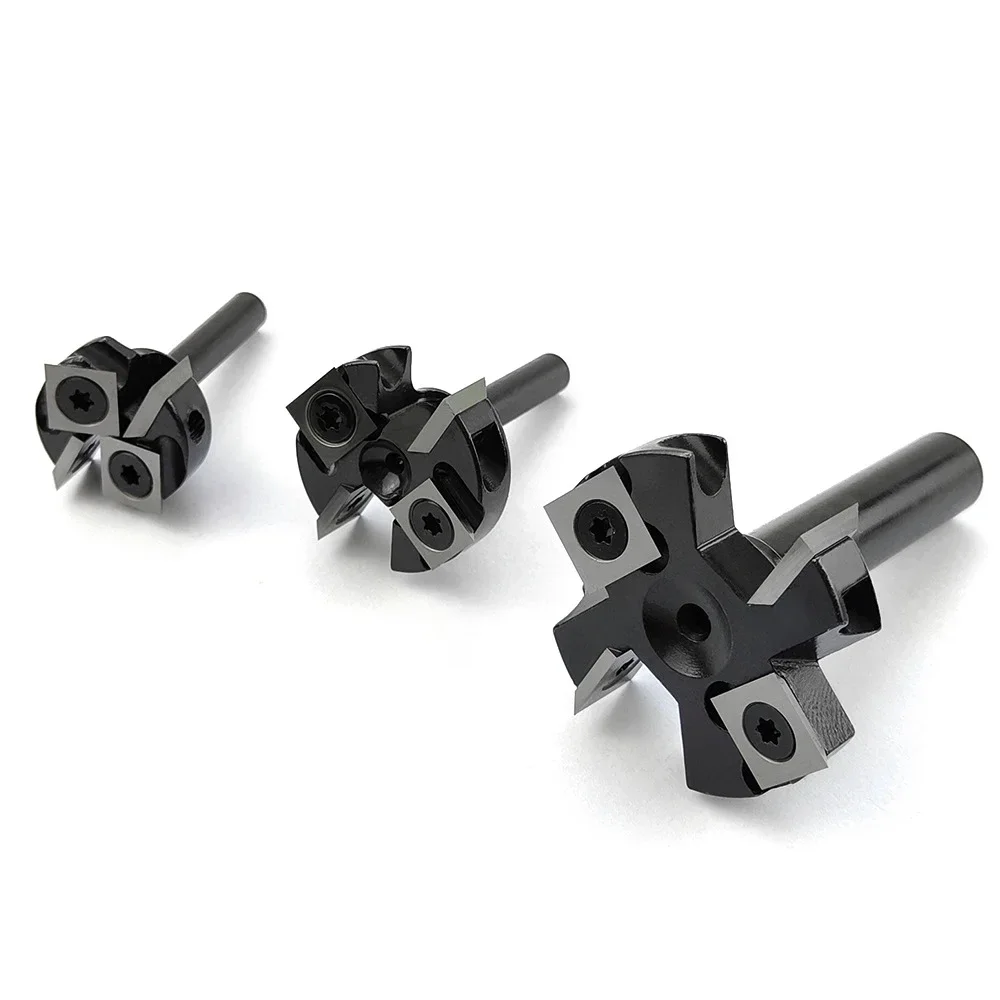

Wood Planer Bit 45mm 38.1mm Cutting Diameter, 12mm 8mm Shank, Spoilboard Surfacing Router Bit, Insert Carbide Slab

This professional bottom cleaning router bit is not only perfect for wood slab flattening, resurface or plane the top surface of the spoilboard, but also for trimming and slotting/grooving. Great replacement bit tool for woodworking.

2 wings wood cnc router:

Shank diameter: 8mm 12mm;

Cutting diameter : 38.1mm, 45mm;

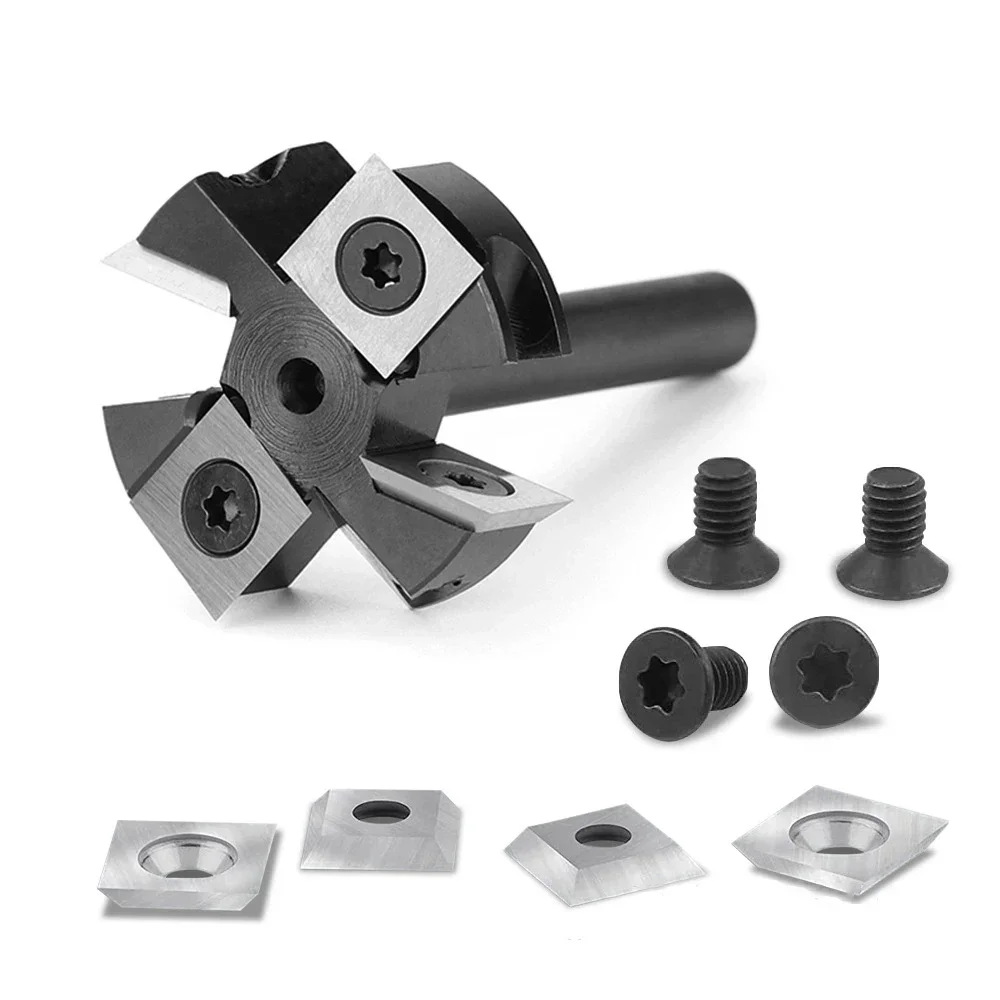

Carbide inserts: 12*12*2.2mm.

Grade of carbide inserts :YG6X.

Countersunk screw : M4*7

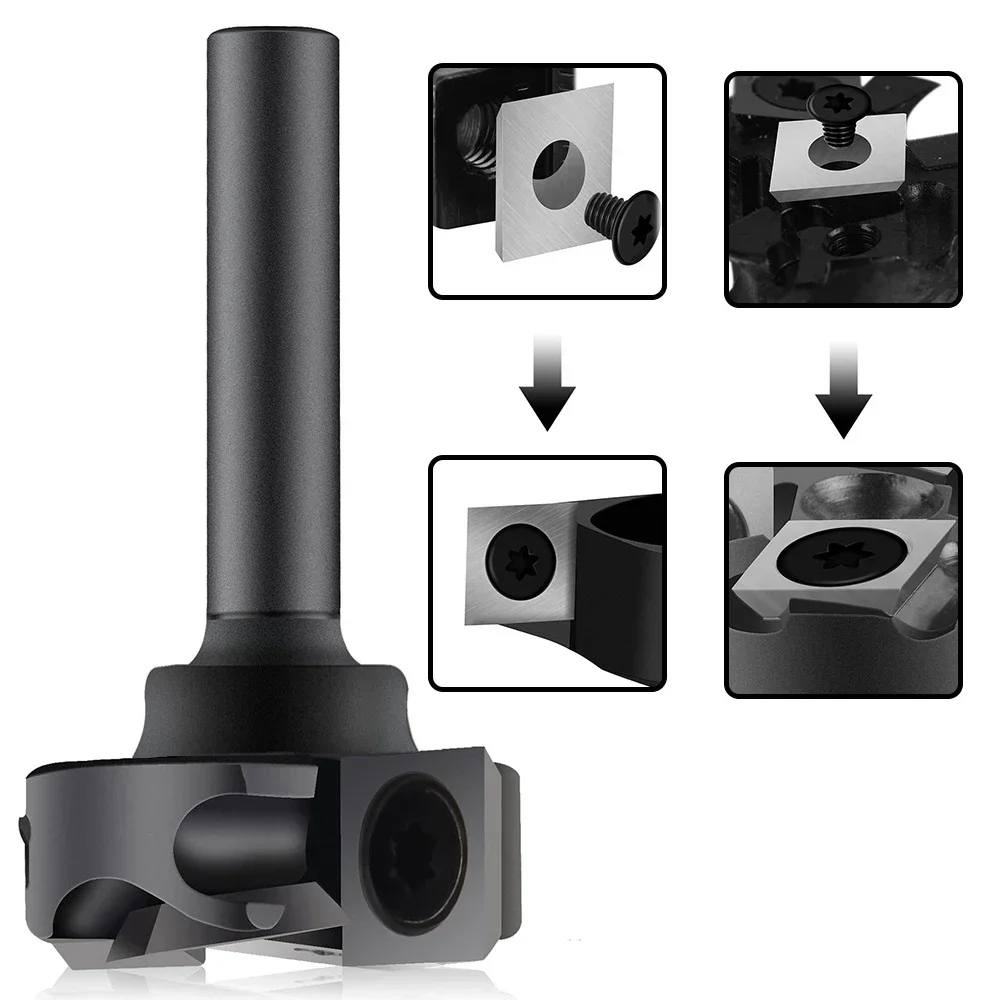

The surfacing router bit utilizes 4-sid solid carbide inserts. All 4 edges can be used, use a screwdriver(include) to make other blade edge outside. Can replace the carbide inserts when needed, instead of replacing the whole bit. Cost effective solution compared to brazed router bits and solid carbide spiral bits.

Suitable for soft and hard woods, MDF, laminate, particle board, plywood compact panel, acrylic and etc.

Use on CNC and other automatic routers as well as hand-held and table-mounted portable routers. Such as woodworking engraving machine, trimming machine, etc.

Cutting parameter:

D38: Feed 5000-9000mm/min, RPM: 10000-15000

D45: Feed 5500-9500mm/min, RPM: 10000-15000

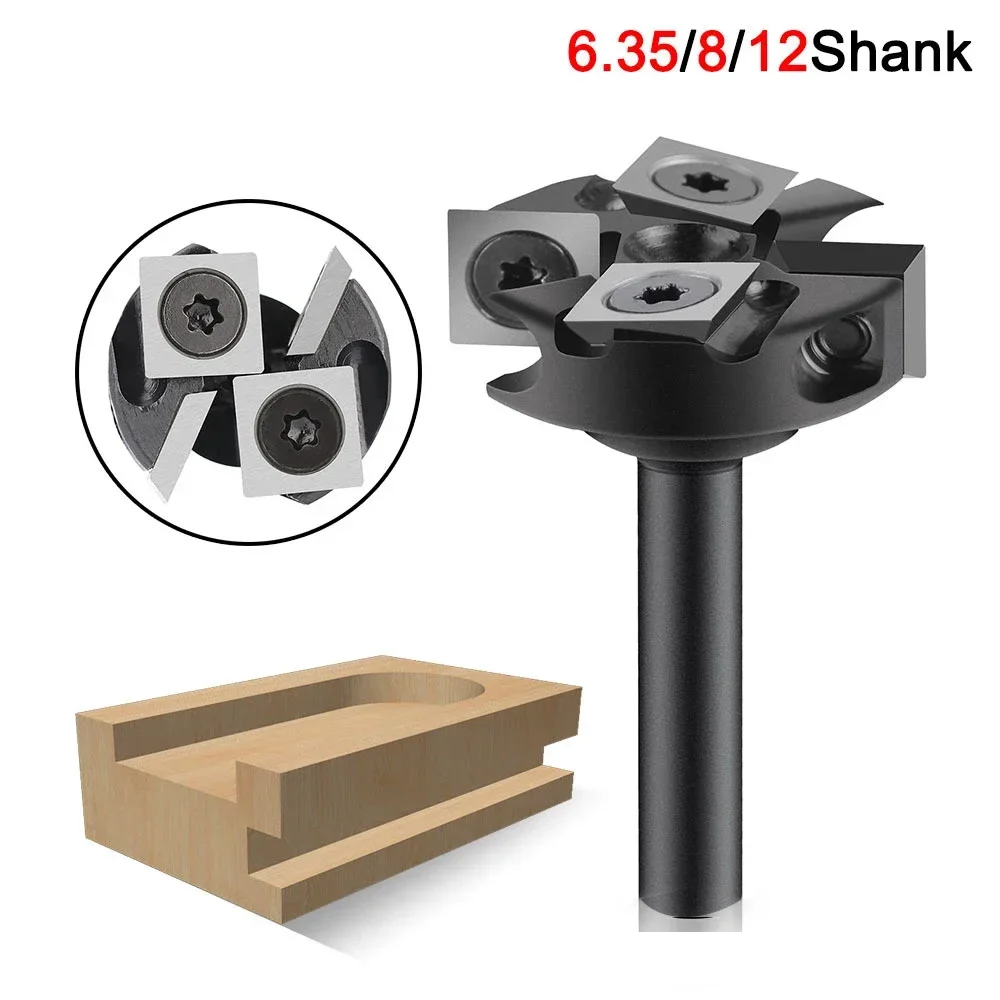

1/4X1: Knife handle: 1/4 "diameter: 1"; Hard alloy blade: 10 * 10 * 2.2mm.

1/4X1-1/4: Knife handle: 1/4 "diameter: 1-1/4"; Hard alloy blade: 10 * 10 * 2.2mm

8X1-1/4: Knife handle: 8mm diameter: 1-1/2 "; Hard alloy blade: 12 * 12 * 2.2mm.

12X45: Knife handle: 12mm diameter: 45mm; Hard alloy blade: 12 * 12 * 2.2mm.

The 2+2 blade design makes the tool more balanced during operation and achieves a smoother surface. The milling cutter head is equipped with a blade.

Industrial grade CNC woodworking milling cutter: high-strength steel body, anti rebound design, 4 cutting blades
