SPECIFICATIONS

Brand Name: DREANIQUE
Hign-concerned Chemical: none
Origin: Mainland China
Model Number: R0.5-30.5-75-D6
Overall Length: 75MM
Material: Carbide
Type: Ball Nose End Mills
Certification: none
Diameter: 6mm
Coating: Hsi
Flute: 2 flute end mill
Geometry: ball nose
Application: 0-62HRC For profile milling, high speed machining applicable
is_customized: Yes
Cutting length: 30.5mm
shank diameter: 6mm
Suitable Materials: stainless-steel,cast iron,Cu,Al,hard wood
Radius: 0.5MM

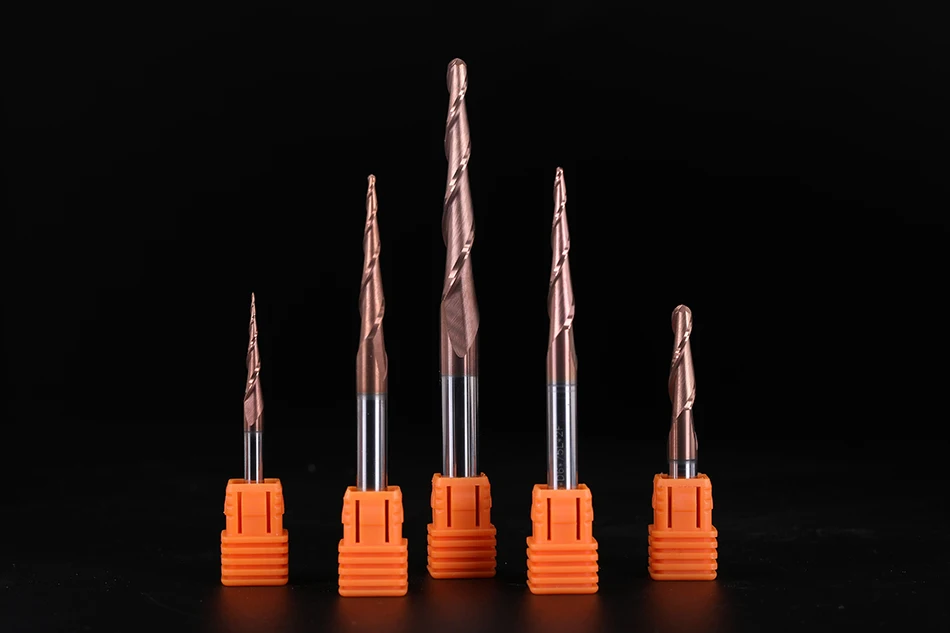

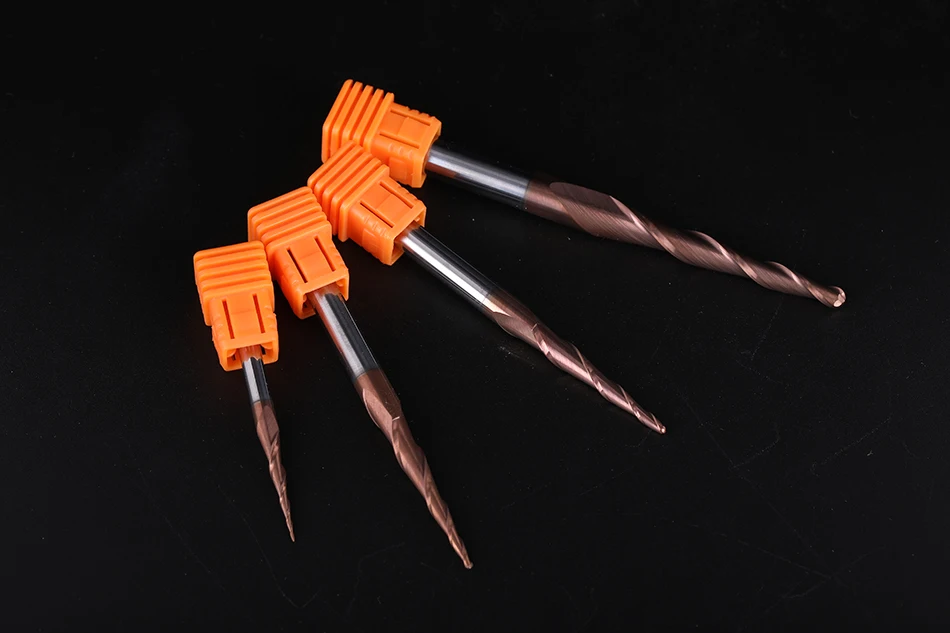

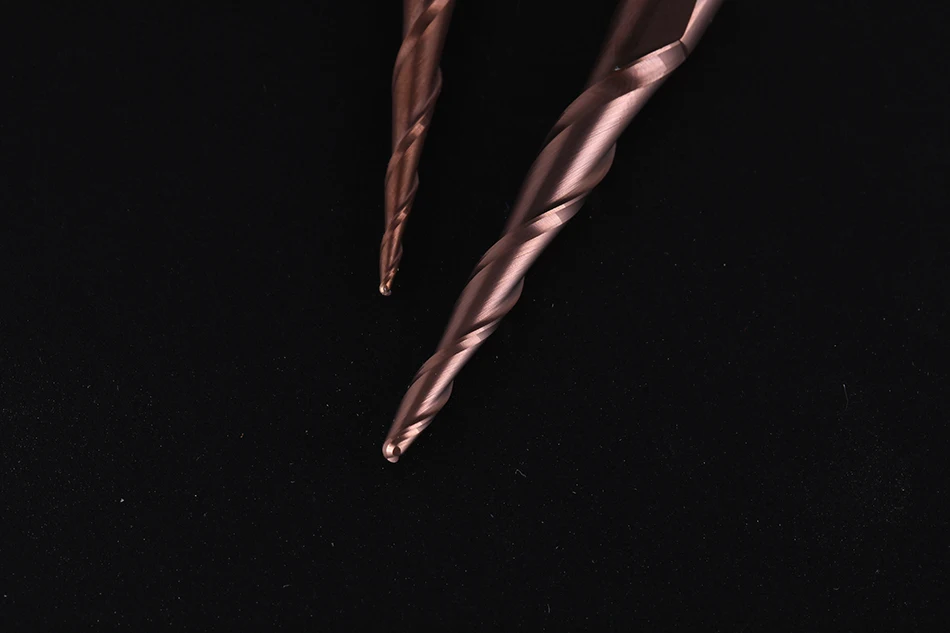

 5pcs/lot HRC62 Coated D4 D6 Solid Carbide 4mm 6mm Ball Nose Tapered End Mills Router Bits cnc Taper Wood Metal Cutters cone mill









Shank Diameter:4mm 6MM



     Type: End Mill




     Material: Solid Tungsten Carbide




     Coating: H-SI




     Overall Length: 50,75MM




     Worked Material Hardness: HRC62




     Flutes: 2 Flutes




     Flutes length: about 15mm, 20mm,20.5mm, 30.5mm




     Overall length: 50mm,75mm




     Radius:0.25mm,0.5mm,0.75mm,1.0mm,1.5mm,2.0mm




     Suitable Materials: stainless-steel,cast iron,Cu,Al,hard wood

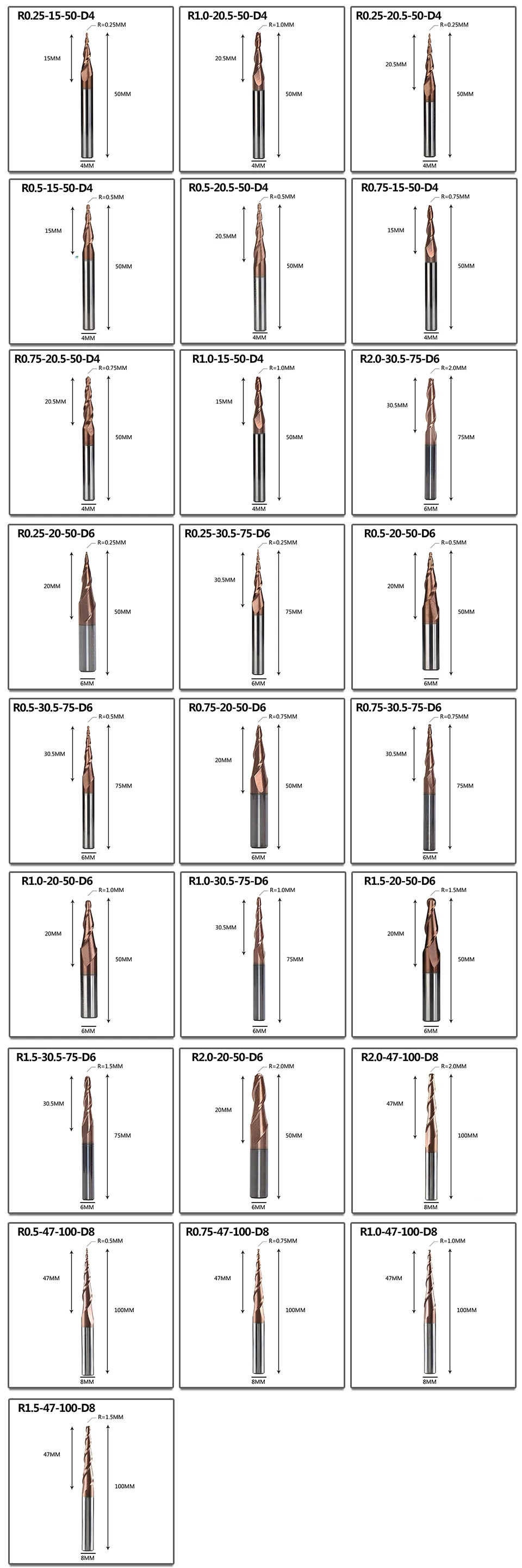

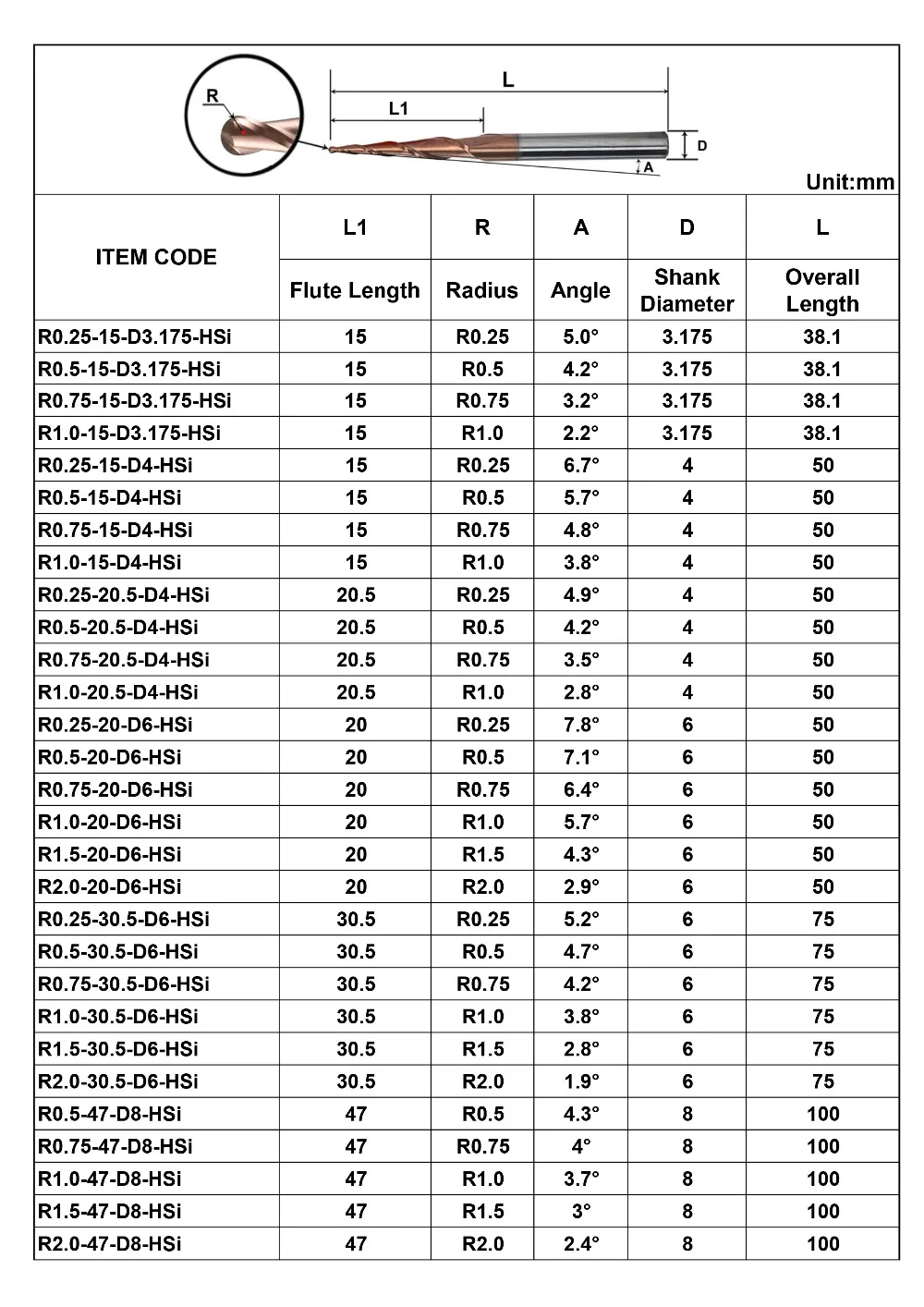

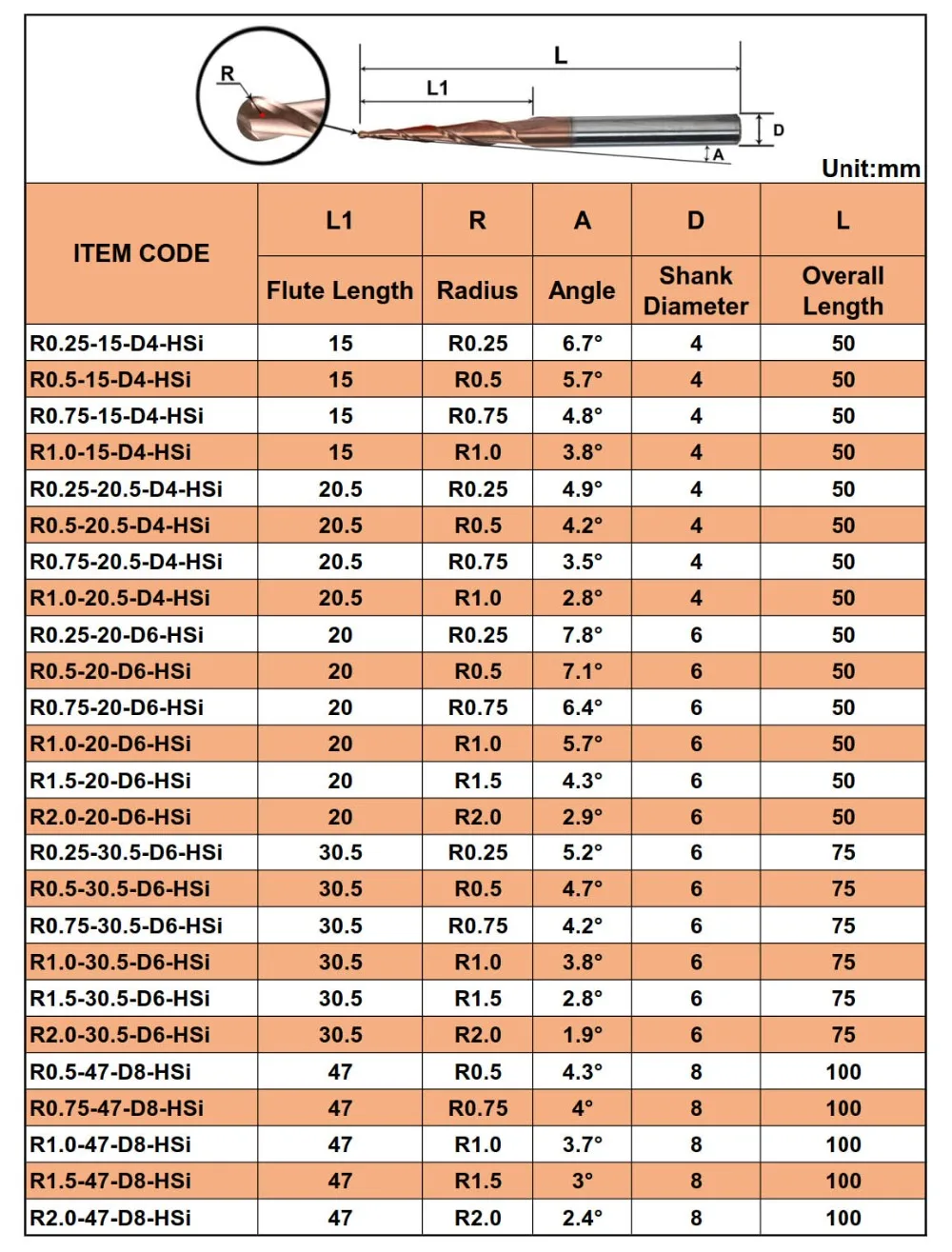

MORE DIMENSIONS OF TAPERED BALL NOSE END MILLS:


R0.25*D4*20.5*50L*2FCLICK HERE!


R0.25*D4*15*50L*2FCLICK HERE!


R0.5*D4*20.5*50L*2FCLICK HERE!


R0.5*D4*15*50L*2FCLICK HERE!


R0.25*D6*30.5*75L*2FCLICK HERE!


R0.5*D6*30.5*75L*2FCLICK HERE!


R0.75*D6*30.5*75L*2FCLICK HERE!


R1.0*D6*30.5*75L*2FCLICK HERE!


R1.5*D6*30.5*75L*2FCLICK HERE!


R0.5*D8*47*100L*2FCLICK HERE!


R0.75*D8*47*100L*2FCLICK HERE!


R1.0*D8*47*100L*2FCLICK HERE!
