SPECIFICATIONS

Brand Name: NoEnName_Null
Origin: Mainland China
Place of Origin: Shandong, China
Brand Name: HT-TOOLS
Model Number: 140E 148E 163E 171E 173E 185E COLLET
Power: Manual
Material: 65Mn, 65Mn
Name: High quality Collets Din6343 140E 148E 163E 171E 173E
Hardness: Claming part HRC55~60 elastic part HRC40~45
Accuracy: 0.015
Model: DIN6343 collet
rust-proof: by rust-proof oil
Applicable: to all sorts of auomatic lathes,turret lathes

 High quality Collets Din6343 140E 148E 163E 171E 173E



 1.Material:65Mn

2.Hardness:clamping part HRC55-60 Elastic part HRC40-45

3.Accuracy:0.015mm

4.Type:round,square,hex

5. Packaging:Paper case or plastic case

6.This unit is applicable to all sorts of automatic lathes,turret lathes








HT-0013

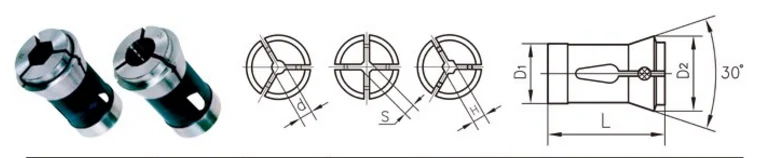

DIN6343 CLAMPING COLLETS












Mode
D1

(mm)
D2

(mm)
L

(mm)
Hole size(mm)
Wt(kg)


ROUND
SQUARE
HEX


DIN6343-F17.5
17.5
22
51
13
8
10
0.05


DIN6343-F22
22
30
55
16
11
13
0.09


DIN6343-F27
27
38
72.7
22
15
19
0.10


DIN6343-F28
28
38
70
22
15
19
0.12


DIN6343-F32
32
45
75
26
18
22
0.27


DIN6343-F35
35
48
80
30
21
26
0.35


DIN6343-F42</
