SPECIFICATIONS

Brand Name: MZG
Origin: Mainland China
Material: Hard Alloy
Hardness: HRA89.5~92.8
Certification: none
Usage: Drilling Processing
Model Number: SPMG050204 ZP15A

MZG 10PCS SPMG 050204 060204 07T308 090408 ZP15A CNC Lathe Rough Machining SP U Fast Drill Carbide Inserts
1.MZG Tungsten Carbide Inserts Item Specifics
2.MZG Tungsten Carbide Inserts And Adapter Tool Product Photo


3.MZG Tungsten Carbide Inserts Packing Info
4.MZG Tungsten Carbide Inserts Parameter
MZG CNC Tool Insert Material Introduce
1.Coated Carbide(CVD)
Applicable from low to high speed cutting and from finishing to roughin.
Stable cutting is achieved due to the superior toughness and crack resistance.
Cutting times are reduced due to good chip control from effective chipbreakers.
Achieving superior processing efficiency in the field of a wide range of steel/casting Parts processing.
ZC2501  ZC2502: suitable for low speed machining of steel part
ZC2511  ZC2512: suitable for high speed machining of steel part
ZK3511S: suitable for hihg speed machining of cast iron part
2.Coated Carbide(PVD)
Good for low to high speeds and finishing to heavy roughing cutting.
Stable cutting with excellent toughness.
Smooth fine surface of PVD coated carbide provides good surface finish and high.
Achieved high reliability in the unstable processing field of stainless steel
ZP1521: suitable for high speed machining of stainless steel
3.Cermet
Excellent wear resistance enables high cutting speeds
Cermet maintains good surface finished due to the low affinity to workpiece material.
Excellent wear resistance enables high cutting speeds.
ZN60: suitable for steel/cast finish processing
4.Carbide
Tough and Hard, good thermal conductivity
Suitable for cutting non-ferrous metals and non-metals
Stable cutting at low cutting speeds, including milling operations
ZK10: suitable for Cutting Aluminum Al non-ferrous processing
5.CBN
Superior wear resistance when cutting hard materials
Suitable for high speed cutting of cast iron and sintered steel
High thermal conductivity provide stable cutting
CBN-S: suitable for difficult cutting material processing
CBN-K: suitable for cast iron processing
6.PCD (Diamond Sinter)
Applicable for non-ferrous metals, non-metals turning milling and other various type of cutting .
Reduced edge build-up allows for high precision cutting.
Diversified applications for cutting of non-ferrous metals and non-metals.
Finished surface will be rainbow colored.(a mirror-like finished surface will not be obtained when single crystal diamond is used.)
PCD: suitable for cast iron processing
MZG CNC Tool Insert Material Introduce

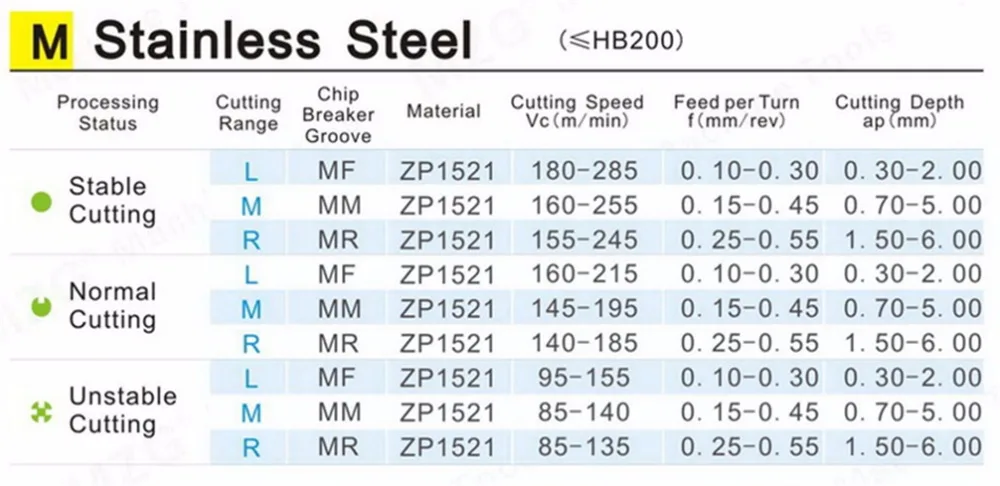

MZG Tungsten Carbide Inserts Cutting Parameter Recommend
Cutting Parameter Recommend


5.MZG Tungsten Carbide Inserts Instruction
Safety Notes for Cutting Tool
1 Introduction
MZG has put a "caution" or a "warning" label on the package of the cutting tool products, but it is not on the tool itself.
Before using and handling any cutting tool products and cutting tool materials, be sure to read this guideline so they are used correctly.
Also, as part of your safety education,please make sure to familiarize all of your actual operators with the cont
